The uncompromising regulatory reality of Class II and Class III medical device manufacturing leaves zero room for error. A single untraceable defect in fluid containment can trigger catastrophic product recalls and severe patient safety risks. Manufacturers face the immense difficulty of maintaining continuous data integrity across complex, multi-stage manufacturing processes. A critical gap often exists between mechanical output and digital audit trails, complicating compliance with stringent standards like FDA 21 CFR Part 11 and ISO 13485.
True traceability cannot be bolted onto legacy equipment as an afterthought. It must be natively integrated into the Programmable Logic Controller (PLC) and Supervisory Control and Data Acquisition (SCADA) architecture. A modern Dialysis Bag Production Line demands a unified digital ecosystem where every mechanical action generates a verifiable data point. This approach transforms raw manufacturing data into actionable, compliant electronic batch records.
Regulatory Alignment: Natively integrated traceability ensures automated compliance with FDA and ISO standards by generating immutable electronic batch records (EBR).
Process-Level Granularity: Effective systems track micro-parameters (temperature, pressure, high-frequency energy, dwell time) at critical nodes, particularly during high-risk stages like tube insertion and welding.
Configuration Impact: The choice between modular setups and a fully integrated machine dictates the complexity of data handoffs and overall audit trail continuity.
Risk Mitigation: Automated traceability drastically reduces the scope and financial impact of potential recalls by enabling pinpoint isolation of defective batches.
A compliant audit trail requires strict baseline parameters. Systems must record operator identification, time-stamped parameter logs, material lot tracking, and automated alarm histories. Every action taken on the machine floor must link back to a specific user and timestamp. This creates an unbroken chain of custody for the entire production run. When an operator logs into the HMI, their credentials bind to every subsequent machine cycle until they log out. We see this implemented through RFID badges or biometric scanners directly on the control panel.
Modern manufacturing demands a shift from reactive quality control to proactive quality assurance. End-of-line testing alone is insufficient for medical devices. In-line parameter monitoring captures deviations the moment they occur. This real-time oversight prevents defective products from advancing down the line, saving material costs and reducing compliance risks. You need sensors that sample data at millisecond intervals to catch transient voltage spikes or pressure drops that manual inspections miss.

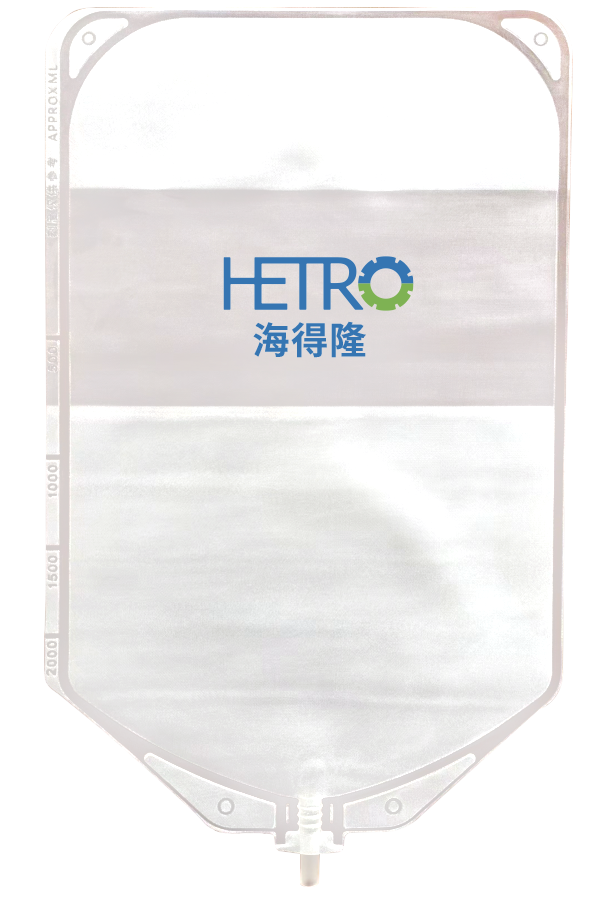

Raw materials dictate the final quality of the medical device. Medical-grade PVC or non-PVC films, ports, and tubes must be scanned and bound to a specific production batch ID before entering the machine. This initial handshake establishes the foundation of the electronic batch record. Operators use handheld or fixed scanners to read supplier barcodes on incoming pallets.
Facilities integrate barcode scanners and RFID readers directly at material loading stations. These devices verify components against the approved bill of materials. If an operator attempts to load unapproved or expired components, the control system locks the machine. This hard-stop interlock eliminates human error at the point of entry. The PLC simply will not send the start signal to the servo motors until the material ID matches the active recipe.
Scan the incoming film roll barcode using the fixed station reader.
Verify the lot number against the active ERP production order on the HMI.
Load the film onto the unwind stand and engage the pneumatic chucks.
Scan the port and tube component bins before loading them into the vibratory feeder bowls.
Acknowledge the material verification prompt on the main control screen to unlock the start sequence.
Regulatory bodies mandate Unique Device Identification for medical products. Manufacturers embed laser marking or high-resolution thermal transfer printing systems directly within the equipment. These printers apply permanent, scannable codes to every single bag produced. The print head synchronizes with the film indexer to ensure precise placement of the 2D matrix code.
The control system verifies these 1D or 2D barcodes using advanced vision sensors. The sensors read the printed code and link the physical UDI to the digital Electronic Batch Record in real-time. If a code is unreadable or missing, the system automatically rejects the bag and logs the failure. The vision system evaluates print contrast, module size, and quiet zone integrity based on ISO/IEC grading standards.
Port and tube insertion represent high-risk failure points. Stringent oversight is mandatory during dialysis bag T fitting welding to ensure absolute hermetic seals. A microscopic leak compromises the entire fluid delivery system. The welding station utilizes specialized tooling to apply uniform pressure and energy across the joint.
Traceability data capture varies based on the welding technology. High-Frequency (HF) welding requires logging anode current, grid current, RF power, weld time, and electrode pressure. Thermal contact welding demands precise tracking of dwell time, heater band temperature, and mechanical force. Automated vision inspection measures tube-to-port insertion depth prior to welding. The system logs these physical dimensions alongside the thermal parameters.
Welding Parameter | Monitoring Method | Acceptable Tolerance Range | Traceability Action on Deviation |
|---|---|---|---|
Heater Temperature | In-line Thermocouple | +/- 2 Degrees Celsius | Log error, reject bag, trigger HMI alarm |
Weld Dwell Time | PLC Timer | +/- 0.1 Seconds | Log error, reject bag, halt cycle if repeated |
Electrode Pressure | Proportional Valve Sensor | +/- 5 PSI | Log error, reject bag, flag maintenance |
Insertion Depth | Vision Camera System | +/- 0.5 Millimeters | Log error, reject bag, adjust feeder speed |
The control system continuously monitors these variables against validated upper and lower control limits. If any single parameter deviates, the machine flags the anomaly. It automatically segregates the affected bags into a locked reject bin, ensuring they never reach the packaging stage. The reject mechanism uses a pneumatic diverter gate confirmed by a through-beam sensor.
Edge trimming defines the final physical boundary of the fluid container. Vision systems and sensors play a vital role within the bag edge trimming machine module. They ensure the physical cut aligns perfectly with the welded seam. Misaligned cuts can weaken the perimeter seal and lead to burst failures during sterilization or transport.
The system records dimensional tolerances for every cut. It monitors blade wear and cutting force to predict maintenance needs before quality degrades. The software tracks scrap rates and links edge-seal integrity data back to the specific film roll lot. Traceability extends to the trim waste removal process. Vacuum sensors verify that waste material is successfully extracted, ensuring no particulate contamination carries over to the finished product.
In-line non-destructive leak testing provides the final layer of physical verification. Systems utilize high-vacuum decay or differential pressure decay methods to detect micro-leaks. These testing modules interface directly with the central traceability database, logging the pressure differential for every unit. The test chamber isolates the bag and measures pressure changes over a specific decay cycle.
Failed units trigger an automated rejection mechanism. The system requires mandatory sensor-based verification to confirm the rejection. Photoelectric sensors track the physical path of the rejected bag. They confirm the defective unit has physically entered the locked reject container, closing the loop on the audit trail. If the sensor does not detect the rejected bag entering the bin, the entire line shuts down immediately.
A dialysis bag dual station machine separates the manufacturing process into distinct phases. Film formation and perimeter welding occur on one chassis, while component assembly and edge trimming happen on another. This modular setup offers flexibility but introduces data continuity challenges. Operators must physically move batches between stations, creating a gap in the automated tracking.
Maintaining a seamless audit trail is difficult when transferring semi-finished goods between independent stations. Data silos can form if the machines do not communicate perfectly. To mitigate this risk, manufacturers must implement intermediate barcode generation. Automated physical transfer mechanisms and strict database handshakes are required to bridge the data gap between the two stations. The first station prints a routing label, which the second station scans before initiating its cycle.

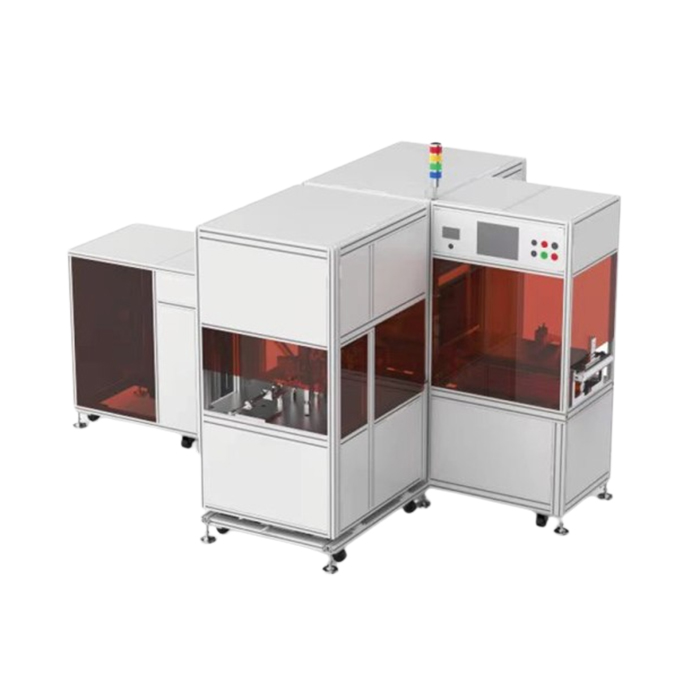

The end-to-end continuous manufacturing model consolidates all operations. A dialysis bag integrated machine handles coiler feeding, film tensioning, port welding, edge trimming, leak testing, and sorting on a single chassis. The film web never leaves the machine until it is a fully formed, tested, and printed product.
This unified architecture provides massive traceability advantages. A single PLC and HMI setup eliminates data handoff risks entirely. The system creates a seamless electronic batch record from the raw film roll to the finished, printed bag. Integrated systems are inherently better suited for direct Manufacturing Execution System (MES) or Enterprise Resource Planning (ERP) integration, streamlining facility-wide data management. You avoid the integration headaches of making two different control panels talk to the same server.
Data flow follows a strict hierarchy in modern manufacturing. Field sensors and actuators feed raw electrical signals to the PLC. The Human-Machine Interface (HMI) translates this data into real-time visual dashboards for operator intervention. The SCADA system archives the historical data for long-term compliance storage. The PLC acts as the brain, executing logic in milliseconds, while SCADA acts as the memory bank.
High-frequency data sampling is critical for medical device manufacturing. The system must capture data at millisecond-level resolution. This ensures transient anomalies during welding or trimming are accurately recorded. Industrial communication protocols like OPC UA, EtherNet/IP, or PROFINET provide secure, standardized data transport from the machine level to higher-level enterprise networks. Hardwiring these connections with shielded cables prevents electromagnetic interference from corrupting the data packets.
Software must meet strict regulatory standards for electronic records. 21 CFR Part 11 compliance requires role-based access control (RBAC). Operators must use biometric scanners or secure password logins to access the machine controls. The system generates immutable electronic signatures for all critical actions. A standard operator cannot change a weld temperature; only a logged-in engineer with verified credentials can unlock that parameter screen.
The software meticulously handles manual overrides, recipe changes, and parameter adjustments. If an engineer alters a heating parameter during a production run, the system demands authentication. It generates a structured reason-for-change log, permanently attaching the engineer's credentials and justification to the batch record. This log cannot be deleted or modified by anyone, including the system administrator.
Factory IT networks occasionally experience downtime. A robust traceability system mitigates network disruptions through local buffer storage. Store-and-Forward capabilities on the machine's edge controller or PLC prevent catastrophic data loss. The local memory acts as a temporary vault for the batch records.
If the connection to the central server drops, the machine continues to operate safely. It stores all parameter logs and audit trails locally. Once the network connection is restored, the system automatically forwards the buffered data to the SCADA server, ensuring the electronic batch record remains complete and unbroken. We typically specify at least 64GB of local solid-state storage on the edge controller to handle several days of disconnected operation.
A traceability system is useless if it fails validation. If the software cannot be qualified, the captured data is legally unusable for regulatory submissions. This presents a massive compliance risk for medical device manufacturers. You cannot simply install the machine and start producing compliant records without executing the formal validation protocols.
Mitigate this risk during the procurement phase. Require equipment vendors to provide comprehensive Installation Qualification (IQ) and Operational Qualification (OQ) documentation. These protocols must specifically address the software architecture, data capture mechanisms, and 21 CFR Part 11 compliance features. The vendor should execute a Factory Acceptance Test (FAT) that simulates data logging failures to prove the system responds correctly.
Human error remains a significant threat to data integrity. Manual inputs, such as scanning the wrong barcode or entering an incorrect lot number, can corrupt the entire batch record. A dialysis bag making machine must be designed to minimize reliance on manual data entry. Keyboards should be virtually eliminated from the routine operation process.
Implement hard-stop interlocks across the production line. The machine must refuse to cycle until the correct, validated material scan is registered in the system. By forcing compliance through hardware and software constraints, you eliminate the possibility of operator-induced data corruption. Use drop-down menus tied directly to the ERP system instead of free-text fields for batch setup.
Localized data loss due to hardware failure on the factory floor can destroy weeks of production records. Relying on a single point of failure for data storage is unacceptable in a regulated environment. A power surge that fries a local server should not wipe out your compliance data.
Design redundant, edge-to-cloud or edge-to-server data pipelines. Implement automated local buffering during network outages. Regularly test backup and disaster recovery protocols to ensure historical batch records can be restored quickly and accurately in the event of a catastrophic server failure. Use RAID arrays for local servers and schedule automated off-site backups daily.
Audit your existing production lines to identify gaps between mechanical actions and digital records.
Request software demonstrations and 21 CFR Part 11 compliance certificates from potential equipment manufacturers.
Prioritize vendors who demonstrate native MES integration and transparent validation protocols.
Implement hard-stop interlocks on all material loading stations to prevent unapproved component usage.
A: The minimum requirements align with ISO 13485 standards. Systems must track material lots, log machine parameters per batch, and record operator identification. Every critical action must have a timestamp and an electronic signature linking it to the final product.
A: Integrated machines eliminate data silos and manual handoffs. By consolidating all processes on a single PLC architecture, they create a single, continuous data stream. This ensures an unbroken electronic batch record from raw material loading to the finished product.
A: Retrofitting is highly difficult and often cost-prohibitive. Older machines lack the necessary high-resolution sensors and modern PLCs required for millisecond data capture. Custom integration usually costs more and performs worse than purchasing modern, natively integrated equipment.
A: Critical parameters include heating temperature, RF power, anode current, electrode pressure, dwell time, and cooling rates. Monitoring these variables in real-time is essential to prevent micro-leaks and ensure hermetic seals.
A: It provides dimensional verification of the final product. The system logs cutting pressure, monitors blade wear, tracks scrap rates, and uses vision systems to capture data confirming the physical integrity of the perimeter seal.
A: It is the FDA regulation governing electronic records and signatures. It ensures that digital manufacturing data is secure, immutable, and equivalent to paper records. It mandates audit trails so data cannot be tampered with or altered without authorization.
