What Material Feeding System Supports Stable Bag Production?

Introduction

Stable bag production starts before welding. In liquid bag manufacturing, the film, tube, valve, port and other components must arrive at the correct position at the correct time. If the material feeding system is unstable, the Liquid Bag Making Machine may produce wrinkles, misplaced seams, tube positioning errors, unstable welds, material jams or leakage risk.

When selecting a Liquid Bag Making Machine, buyers should review the film unwinding, tension control, edge alignment, servo feeding, component feeding and leak detection requirements before machine configuration.

A stable material feeding system should control film roll loading, unwinding, tension, edge guiding, feeding length, servo position, tube feeding, valve feeding, station transfer and waste collection. These functions help keep the bag body, welding area, component position and final seal consistent during production.

This article explains what material feeding system supports stable bag production and what buyers should confirm before choosing a Liquid Bag Making Machine.

Key Takeaway

A stable material feeding system helps protect liquid bag production stability from the first material roll to final inspection.

Key points include:

• Film roll loading should support smooth and continuous material supply.

• Film unwinding should release material without sudden pulling or slack.

• Tension control helps keep the film flat before welding.

• Edge alignment prevents film path deviation and misplaced seams.

• Servo feeding improves feeding length accuracy.

• Tube and valve feeding should match the welding and assembly rhythm.

• Sensors help detect missing material, misfeed or material jam.

• Waste collection helps prevent scraps from affecting production stations.

• Stable feeding supports weld position, bag size and seal integrity.

• Feeding parameters can be saved in recipes for repeat orders and changeover.

• Leak detection helps confirm whether feeding and welding remain stable.

A practical production flow can be shown as:

Film Roll Loading → Unwinding → Tension Control → Edge Alignment → Servo Feeding → Welding / Assembly → Leak Detection → Batch Output

Why Material Feeding Matters in Liquid Bag Production

In liquid bag production, material feeding is not only a transport step. It determines whether the film, tube, valve and welding area arrive at the correct position at the correct time.

A liquid bag may require film forming, bag body welding, tube insertion, valve placement, port welding, cutting, trimming, leak detection and collection. If the front-end material feeding is unstable, later stations may not be able to correct the problem.

Unstable feeding may cause:

• film wrinkles;

• film deviation;

• wrong feeding length;

• misplaced weld seam;

• unstable bag size;

• tube positioning error;

• valve orientation error;

• poor weld continuity;

• material jam;

• station stop;

• trial waste;

• failed leak detection.

For stable bag production, the feeding system should support both film handling and component handling. This is especially important for medical liquid bags, urine bags, drainage bags and other products that require tubes, valves, ports or connectors.

What Does a Material Feeding System Include?

A liquid bag material feeding system includes more than a film roll holder. It may involve film roll loading, unwinding, tension control, edge guiding, servo feeding, tube feeding, valve feeding, component placement, transfer coordination, sensor detection and waste collection.

The feeding system should be designed according to film material, film thickness, bag size, tube structure, valve type, production speed and automation level.

A simple bag product may only need stable film feeding and welding. A more complex liquid bag may require coordinated tube feeding, valve feeding, component orientation and online inspection.

How Film Unwinding Affects Production Stability

Film unwinding is the first step in stable bag production. If film is released unevenly from the roll, the entire line may become unstable. Sudden pulling, roll resistance, loose film or unstable roll diameter can affect downstream feeding accuracy.

Film unwinding affects:

• film flatness;

• feeding force;

• tension stability;

• edge alignment;

• wrinkle control;

• welding position;

• cutting accuracy;

• production repeatability.

A good unwinding system should release film smoothly and support stable feeding into the next station. The film roll should be loaded correctly, centered properly and matched with the required material width.

For PVC liquid bag feeding, TPU liquid bag feeding or other flexible film materials, the system should be tested with real production rolls. Short material samples may not show the same feeding behavior as a full production roll.

Why Tension Control Is Critical for Liquid Bag Welding

Tension control is one of the most important parts of a liquid bag feeding system. If tension is too high, the film may stretch, deform or shift. If tension is too low, the film may wrinkle or move unpredictably. If tension changes during production, the weld seam position and bag size may become inconsistent.

A stable tension system helps keep the film flat before welding. This improves seam position, weld width and bag body consistency.

Tension control should be reviewed together with film thickness and material softness. A thin film may wrinkle more easily, while a thicker film may require stronger feeding support. The machine should not rely only on operator adjustment during production. It should provide a stable structure for repeatable film movement.

How Edge Alignment Prevents Wrinkles and Misplaced Seams

Edge alignment, also called web alignment or edge guiding, helps keep the film path centered. If the film shifts left or right, the welding station may create a seam in the wrong position. Cutting, trimming and tube placement may also become unstable.

Edge alignment helps reduce:

• misaligned film feed;

• misplaced weld seam;

• wrong cutting position;

• uneven bag shape;

• off-center tube position;

• film wrinkle near the seam;

• poor appearance;

• high scrap rate.

A liquid bag edge alignment system may use edge guides, sensors, rollers or automatic correction mechanisms. The correct design depends on film width, bag size, material softness, production speed and required accuracy.

For stable liquid bag production, edge alignment should be checked during trial production. Operators should confirm whether the film remains stable across long runs, not only during short test cycles.

How Servo Feeding Improves Feeding Length Accuracy

Servo feeding helps control feeding length and position. This is important because liquid bag production often requires accurate repeat distance between bag forming, welding, cutting and component placement.

If feeding length is inaccurate, the bag size may vary. The tube position may move away from the intended welding area. The cutting position may shift. The final product may fail dimensional or appearance checks.

Servo feeding can support:

• accurate feeding length;

• repeatable positioning;

• stable station timing;

• faster changeover;

• recipe-based setup;

• reduced manual measurement;

• lower trial waste;

• improved batch consistency.

For multi-spec production, servo feeding and recipe control can help operators recall approved feeding lengths and station positions when switching between bag sizes.

However, servo feeding still depends on proper film unwinding, tension control and alignment. A precise servo feeder cannot fully correct a material path that is unstable before the feeding station.

How Tube, Valve and Port Feeding Should Be Coordinated

Liquid bags are not simple flat packaging bags. They may include tubes, valves, ports, caps, connectors, hangers or membranes. These components must be fed and positioned accurately before welding or assembly.

Tube and valve feeding should be synchronized with film feeding and welding station timing. If the tube arrives late, shifts during positioning or is placed at the wrong angle, the weld area may be unstable. If the valve orientation is wrong, assembly failure or leakage may occur.

For liquid bag tube feeding and liquid bag valve feeding, sensors and fixtures are important. They can help confirm component presence, position and orientation before welding begins.

How Material Feeding Affects Welding and Leak Detection

Material feeding affects welding quality directly. The welding station needs a flat, aligned and correctly positioned material surface. If film feeding is unstable, the weld may be uneven even if the welding parameters are correct.

Feeding issues can affect:

• weld seam position;

• weld width;

• seal continuity;

• tube welding position;

• valve welding position;

• bag body shape;

• trimming accuracy;

• final seal integrity.

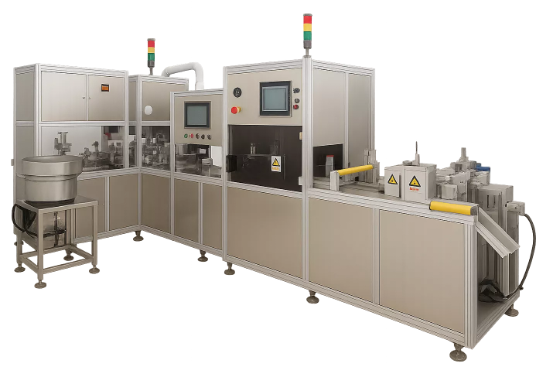

For urine and drainage bag production, a Standard Urine Bag Drainage Bag Automatic Production Line should coordinate material feeding, bag forming, sealing, component assembly and station-to-station transfer as one integrated process.

A feeding problem may not always be visible immediately. Some issues only appear during leak testing, especially if misaligned film, tube positioning error or poor seam continuity affects the sealed area.

Common Feeding Problems in Liquid Bag Production

Feeding problems can come from film material, film roll condition, tension changes, sensor errors, component feeding instability or poor synchronization between stations.

A well-designed feeding system helps reduce material jams, misfeeds and unstable bag forming by improving tension control, alignment and sensor monitoring.

It should also provide clear alarms when the material is missing, jammed, misfed or incorrectly positioned.

How Sensors and Alarms Support Stable Feeding

Sensors and alarms are part of modern liquid bag automated feeding. They help detect abnormal conditions before defective products continue through the line.

Useful detection functions may include:

• material presence detection;

• film path deviation detection;

• feeding length monitoring;

• tube missing detection;

• valve missing detection;

• valve orientation check;

• port position confirmation;

• material jam alarm;

• waste collection alarm;

• station synchronization alarm.

These functions reduce dependence on manual observation. They can also help protect the welding station, prevent repeated scrap and improve production repeatability.

The alarm system should be easy to understand on the HMI. Operators should be able to identify the problem quickly and restore production without unnecessary trial-and-error adjustment.

What Buyers Should Confirm Before Choosing a Liquid Bag Making Machine

Before choosing a Liquid Bag Making Machine, buyers should confirm how the feeding system will support their bag type, material and production goals.

Buyers should provide bag drawings, film specifications, sample components, tube structure, valve type, target output and automation expectations before machine configuration.

This allows the supplier to review whether the feeding system, welding stations, component feeders and leak detection equipment match the product structure.

How Leak Detection Confirms Feeding and Welding Stability

Leak detection is not part of the feeding system itself, but it helps confirm whether feeding and welding remain stable. If the film path shifts, the tube is not positioned correctly or the weld seam is incomplete, leak testing may identify the problem before final shipment.

After stable feeding and welding, a Medical Bag Leak Detection Machine can help verify whether misaligned film, tube positioning error or poor seam continuity has affected final seal integrity.

Leak detection can help check:

• bag body seam integrity;

• tube welding area;

• valve welding area;

• port connection;

• corner sealing area;

• weak points caused by wrinkles;

• leakage caused by feeding deviation.

Stable feeding reduces the chance of these problems. Leak detection helps confirm the final result.

How HETRO Supports Stable Material Feeding for Liquid Bag Production

HETRO supports liquid bag automation solutions for urine bags, drainage bags, medical fluid bags and related products. For stable production, the material feeding system should be reviewed together with film material, film thickness, bag size, tube structure, valve feeding, welding station layout and leak detection requirement.

HETRO can help review:

• liquid bag type;

• film material;

• film thickness range;

• bag size;

• film roll width;

• film unwinding requirement;

• tension control requirement;

• edge alignment requirement;

• servo feeding length;

• tube feeding method;

• valve or port feeding method;

• component placement requirement;

• waste collection design;

• sensor detection needs;

• welding station layout;

• leak testing requirement;

• target production capacity;

• automation level.

For liquid bag projects that require stable feeding and repeatable bag forming, HETRO can help match film unwinding, tension control, edge alignment, servo feeding, component feeding, welding and leak detection to your product structure.

Conclusion

A stable material feeding system in a Liquid Bag Making Machine should control film unwinding, tension, edge alignment, feeding length, servo positioning, tube feeding, valve feeding, component placement, station transfer and waste collection. Stable feeding helps reduce wrinkles, misaligned seams, material jams, tube positioning errors, unstable welding and leakage risk.

For liquid bag production, feeding stability should be reviewed before machine configuration. Film material, thickness, bag size, tube structure, valve type, feeding accuracy, sensor detection and leak testing should all be considered together.

Send HETRO your liquid bag type, film material, film thickness range, bag size, tube or valve structure, feeding accuracy requirement, automation level, leak testing requirement and target production capacity to discuss a suitable Liquid Bag Making Machine solution.

FAQ

1. What material feeding system supports stable bag production?

A stable material feeding system should include film roll loading, unwinding, tension control, edge alignment, servo feeding, component feeding, sensor detection and waste collection.

2. Why is material feeding important in a Liquid Bag Making Machine?

Material feeding determines whether the film, tube, valve and welding area arrive at the correct position at the correct time. Unstable feeding can cause wrinkles, misalignment, weak welding and leakage risk.

3. What is the role of tension control in liquid bag production?

Tension control keeps the film flat and stable before welding. It helps reduce wrinkles, film stretching, size deviation and uneven weld seams.

4. Why is edge alignment important?

Edge alignment keeps the film path centered. It helps prevent misplaced seams, wrong cutting positions, uneven bag shapes and off-center tube placement.

5. How does servo feeding improve production stability?

Servo feeding controls feeding length and position more accurately, supporting consistent bag size, welding position and station synchronization.

6. Does material feeding include tube and valve feeding?

Yes. For liquid bag production, material feeding may include tube feeding, valve feeding, port feeding, component placement and missing-part detection.

7. What feeding problems can affect welding quality?

Film wrinkles, film deviation, inaccurate feeding length, tube misfeed, valve orientation error and material jams can all affect welding quality.

8. Can sensors reduce feeding errors?

Yes. Sensors can detect missing film, tube absence, valve orientation errors, material jams and feeding position problems before defective products continue through the line.

9. Why is leak detection related to feeding stability?

Feeding instability may cause misaligned seams, tube errors or poor seal continuity. Leak detection helps confirm whether final seal integrity is acceptable.

10. Can HETRO configure feeding systems for different liquid bag products?

Yes. HETRO can review liquid bag type, film material, bag size, tube or valve structure, feeding accuracy, automation level and leak testing needs to support suitable Liquid Bag Making Machine configuration.
