How To Choose A Right Urinebag Making Machine

From Red Sea to Blue Ocean: Reframing Urinary-Bag Production through Machine Compatibility

—A Flexible-Manufacturing Roadmap for Nutrition Bags, Feeding Bags, Dialysis Bags and Urine Bags .

1. Why Reclassify Products Around Machine Compatibility?

Over the past two decades the urinary-bag segment has evolved from a “low-value consumable” into a critical gateway for precision fluid management—enteral nutrition, peritoneal dialysis, post-operative irrigation, home care and more. Scenario fragmentation has exploded the SKU count. Start-ups enter the arena seduced by the “flowers” and blind to the “traps”:

• Focus on a single blockbuster and the business dies when the order book shrinks;

• Attempt to cover every SKU and the shop floor becomes a graveyard of dedicated machines, long change-overs and soaring marginal cost.

The industry now calls for a device-centric taxonomy—grouping seemingly unrelated bags by whether they can share one high-frequency (HF) welding platform. Experience shows that three technological families—“shape-only”, “single-tail” and “double-tail”—cover more than 90 % of clinical demand with the smallest possible machine park. Shared lines, resonant capacity.

2. Family 1: Shape-Only Bags—The Invisible Champion of Minimalism

2.1 Product portrait

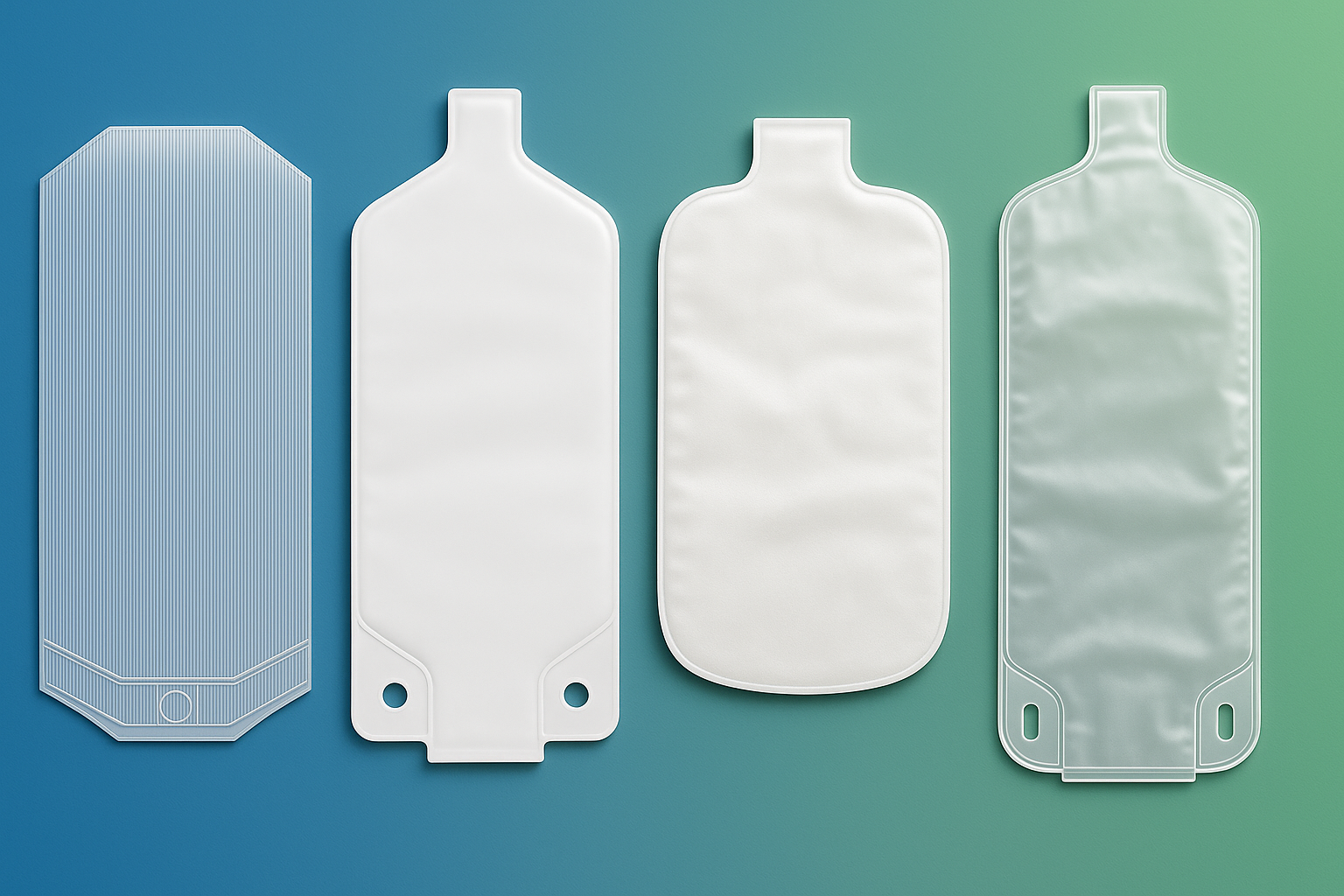

Nutrition bags, feeding bags, side-port multi-lumen bags, contoured hot/cold packs—anything that is “bag first, accessories later”. Tail tubes or additive ports are usually long and must be added off-line.

2.2 Core machine: Three-in-one pouch-forming unit

• Feeding: Servo tension, ±1 mm registration, handles 0.15–0.35 mm PVC/EVA/TPU co-extrusions.

• Welding: 8–10 kW HF power, quick-swap tooling, five-minute change-over between contours.

• Take-off: Choice of flying-cut + stacking or die-cut + manual collation—zero waiting for small lots.

2.3 Key processes

• Pre-punching: Irregular windows, hanger holes, scale windows can be punched just upstream of welding with a high-speed module, cycle loss <3 %.

• Secondary loading: Long tubes, Y-injection ports, caps—hand-loaded and finish-sealed on a stand-alone HF station so the main cycle is not throttled.

2.4 ROI snapshot

500 ml nutrition bag: one machine outputs 22 k pcs/day with six operators doing off-line loading. The alternative—an all-in-one tail-tube machine—costs 2.8× more and shortens change-over by less than 30 %. Conclusion: for shape-only bags, the minimalist former is the ROI king.

3. Family 2: Single-Tail Bags—“Short Tail” ≤80 mm Wins All

3.1 Product portrait

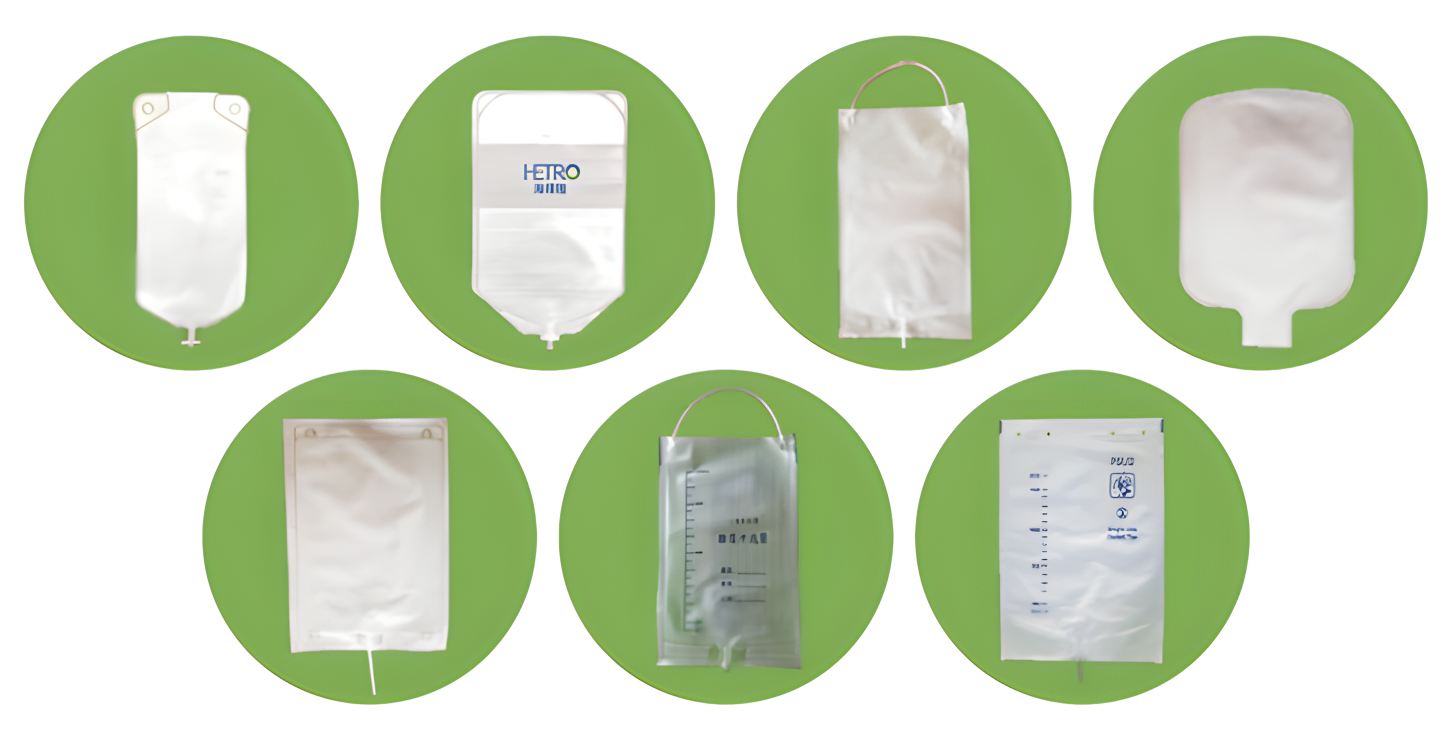

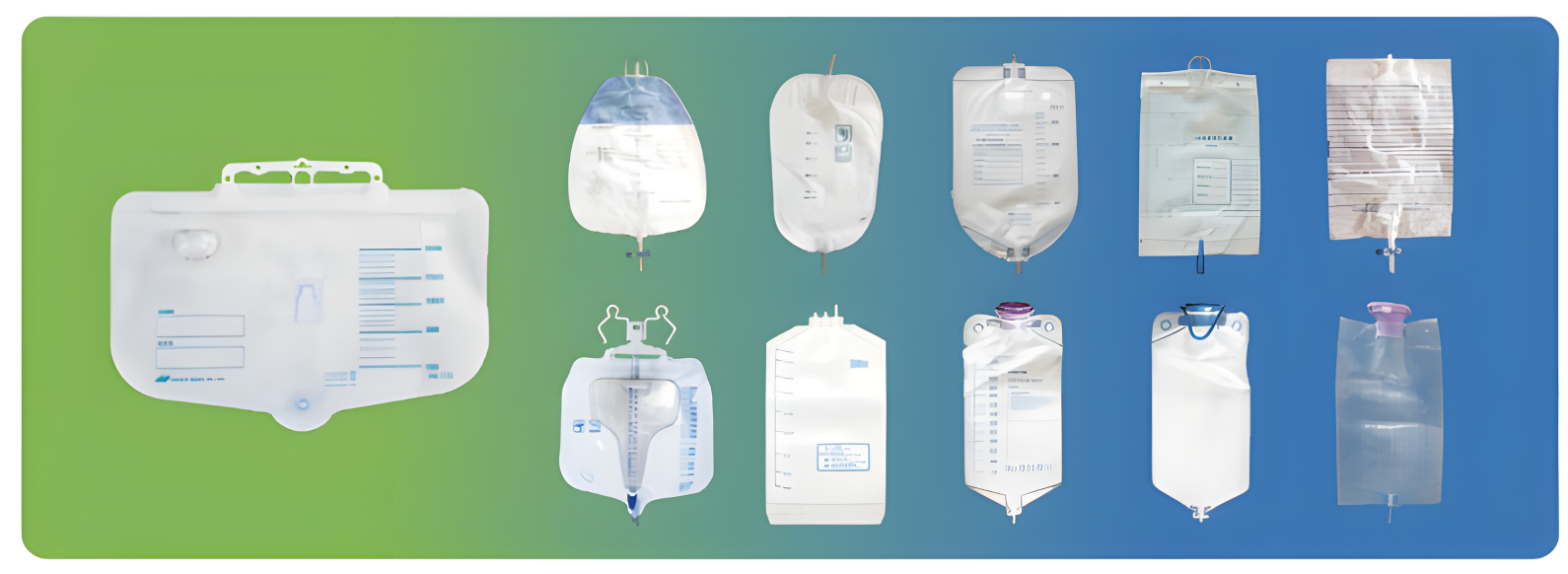

Standard urine bags, dialysis bags, irrigation bags, blue-film watermelon bags—anything with “one tail ≤80 mm”. The short tail allows tube-to-film welding in one pass.

3.2 Core machine: Four-station integrated line

• Feeding: Dual unwind + EPC edge guide, can laminate a breathable film inside.

• Tail welding:

– Vibratory bowl: rigid PVC tails 6–12 mm OD at 120 pcs/min;

– Reel feed: soft PVC/PU tube, on-line cut + chamfer, change-over by swapping a reel.

• Pouch welding: HF + cold-press dual mode, passes 0.1 MPa leakage test.

• Take-off: On-line cut + reject gate, good parts drop directly into totes.

3.3 Process highlights

• Servo-rotary gripper + built-in electrode guarantee uniform weld bead around the tube.

• Optional on-line printing: scales, bar-codes, lot numbers—eliminates post silk-screen.

3.4 Case study

An East-China customer runs both 1.5 L dialysis and 750 ml nutrition bags on one single-tail line: change-over in 15 min, daily mix 18 k pcs, 22 laborers saved per year, OEE 92 %.

4. Family 3: Double-Tail Bags—Flagship of Urine Management, Battlefield of Anti-Reflux Films and Valves

4.1 Product portrait

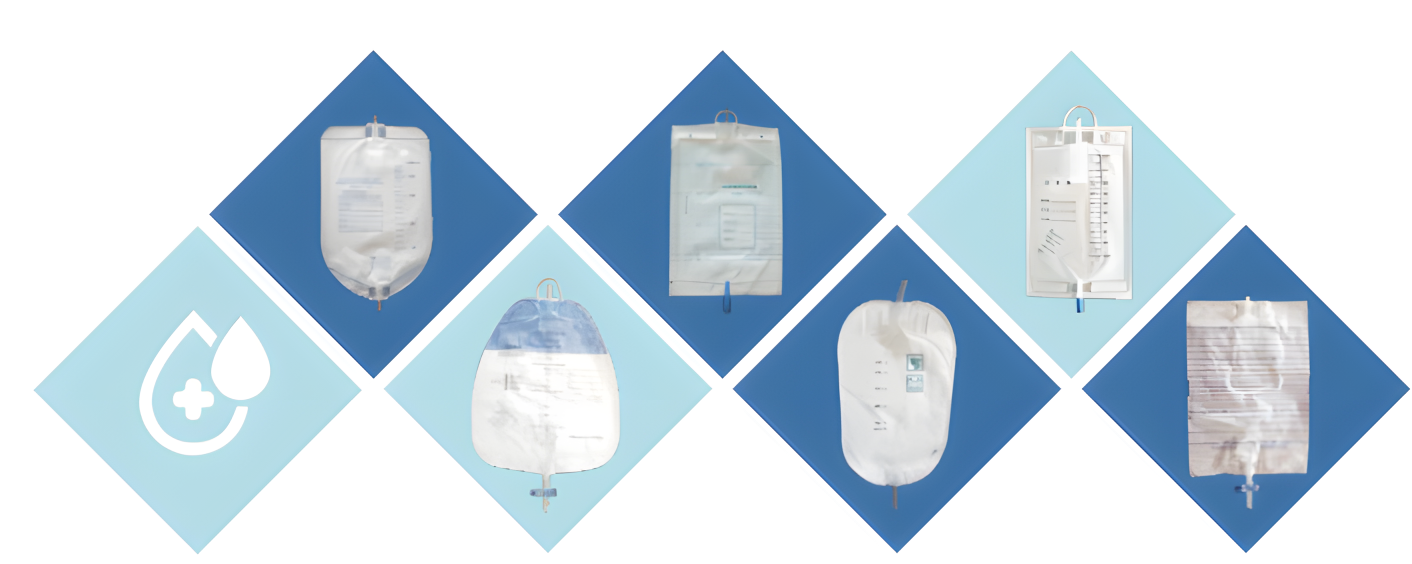

Standard urine bags, anti-reflux bags, metered drainage bags—bags with “a tail at each end”. The inlet tube almost always carries a check film; the outlet is often fitted with a cross or slide valve.

4.2 Core machine: Modular master line

• Check-film welding:

– Blue/white film reel, servo cut + CCD placement, ±0.5 mm accuracy;

– PID temperature loop prevents film shrinkage.

• Inlet-tube welding: on-line insertion of check film + weld in one shot.

• Outlet-tube welding: optional valve-assembly station, 15 pcs/min.

• Pouch welding: mold cooling circuit keeps temperature stable even for 2 L bags.

• Satellite modules: breathable film, valve assembly, on-line leak test—plug-and-play by order.

4.3 Technical hurdles and fixes

• Weld strength vs. reflux pressure: DOE yields the sweet spot (temperature + force + time) to withstand 40 kPa for 30 s.

• Long-seam wrinkles on large bags: full-length clamp conveyor keeps wrinkle height <0.3 mm.

• Valve cross-compatibility: one assembly robot + two different feeding cassettes handles both cross and slide valves.

4.4 Case study

A listed company in South China used the double-tail platform to spawn 27 SKUs within three years—from 500 ml pediatric to 2 L anti-reflux bags—by adding or removing satellite modules, with no new mainframes. OEE rose from 78 % to 93 %, change-over time dropped from 4 h to 35 min.

5. Modular Design: Lines as Lego—Plug, Play, Expand

5.1 Mechanical standardization

All modules share a 1 200 mm frame width and use heavy-duty castors or height-adjustable feet; upgrading from single-tail to double-tail is a matter of unlocking four bolts and rolling a module into place.

5.2 Electrical openness

EtherCAT backbone + OPC-UA data model; third-party inspection, labeling, cartoning devices plug in without integration cost.

5.3 Recipe-driven change-over

HMI hosts one-touch recipes—10 parameter sets for bag, tube and film combinations—so a novice can switch production in five minutes.

5.4 Remote maintenance

Edge gateway + VPN: temperature, current, air pressure streamed to the cloud, 90 % of faults diagnosed remotely, average downtime cut by 42 %.

6. Implementation Guide: How to Choose the Best Footprint for Your Site

6.1 Floor space ≤300 m², volume <500 k pcs/year

Recommendation: shape-only former + manual secondary loading, investment <USD 200 k, payback <6 months.

6.2 300–800 m², 0.5–2 M pcs/year

Recommendation: single-tail line (dual-reel ready), later upgradable to double-tail, investment USD 200–300 k.

6.3 ≥800 m², >2 M pcs/year, with anti-reflux bags

Recommendation: double-tail master + full satellite suite, investment USD 400–800 k, capacity scalable 3× within three years.

Labor mapping

• Single-tail: 1 operator feeding + QC + packing;

• Double-tail: 2 operators feeding + 1 satellite + 2 QC + 3 packing.

Order mix

• If 60 % single-tail, 40 % double-tail, start with single-tail to “feed the long” and add a double-tail host when demand is proven.

• If OEM/ODM dominates and SKUs change frequently, reserve 20 % space for future satellite modules.

7. Epilogue

The urinary-bag track looks shallow but runs deep—one centimetre wide, one kilometre deep. Only by translating chaotic SKUs into “machine language” can we convert price wars back to value wars. Over the past decade we have compiled 100+ line cases and 500+ validated recipes with one goal: let you make the most profitable product in the shortest time with the leanest equipment.

Markets never lack orders; they lack the methodology to turn orders into profit. If you are entering or upgrading urinary-bag manufacturing, bring us your floor dimensions, labor budget and three-year forecast—there is always a modular line ready to translate your red-sea anxiety into blue-ocean profit.
