How Is Coil Pitch Maintained During Tube Spot Welding?

In reinforced catheter manufacturing, maintaining exact coil pitch during thermal bonding processes presents a severe engineering challenge. When pitch shifts during thermal bonding, the catheter suffers compromised flexibility, erratic torque response, or structural failure during vascular navigation. The precision required leaves zero margin for error, as the coil structure directly dictates how the device tracks through tortuous anatomy.

Thermal distortion and mechanical stress during spot welding frequently cause micro-shifts in coil pitch. These minute deviations lead to high scrap rates, failed quality assurance inspections, and non-compliance with strict medical device tolerances. When heat hits the wire, materials naturally expand and contract, threatening the structural integrity of the entire assembly if not rigorously controlled.

Advanced manufacturing equipment mitigates these risks by controlling tension, thermal input, and alignment. Modern systems ensure repeatable yield by locking the assembly in place and modulating energy delivery. This article breaks down how a tubing coil spot welding machine maintains precise coil pitch and integrates into a broader catheter production line.

• Tension and Alignment Control: Precise coil pitch is maintained through synchronized micro-tensioning and automated rotary alignment before and during the weld cycle.

• Thermal Energy Modulation: Advanced equipment utilizes closed-loop feedback to deliver exact energy bursts, preventing localized thermal expansion that warps coil spacing.

• Process Integration: Spot welding must be evaluated as part of a holistic manufacturing line, directly impacting downstream processes like tip fusion and hole punching.

• Validation and Compliance: Selecting equipment with robust data logging capabilities is mandatory for streamlining IQ/OQ/PQ validation and maintaining ISO 13485 compliance.

The Mechanics of Coil Pitch Distortion During Welding

Acceptable tolerances for coil pitch in neurovascular and cardiovascular catheters often fall within microns of the design specifications. Any deviation outside this window compromises the device's success criteria. The coil must remain perfectly spaced to ensure the catheter behaves predictably when navigating tortuous anatomy. Engineers typically target a pitch tolerance of ±0.001 inches for high-performance neurovascular devices. When you miss this target, the catheter either kinks under pressure or fails to transmit torque from the proximal hub to the distal tip.

Localized heat from welding causes rapid thermal expansion and contraction in materials like 304V stainless steel or nitinol wire. This thermal cycling alters the pre-set pitch, forcing the wire to shift slightly from its intended position. Managing this thermal expansion dynamic is the primary hurdle in spot welding reinforced tubes. Nitinol, with its shape memory properties, is particularly notorious for springing out of alignment if the heat-affected zone (HAZ) spreads too far along the wire axis.

Inadequate clamping forces introduce mechanical stress and slippage. If the assembly is not held securely, the coil can spring back or slide along the mandrel during the welding process. This mechanical instability ruins the pitch consistency, rendering the segment unusable. Operators often struggle with finding the balance between clamping the assembly tight enough to prevent movement and loose enough to avoid crushing the delicate inner PTFE liner.

Variable pitch designs, such as transition zones between proximal stiffness and distal flexibility, are highly susceptible to thermal displacement. The changing distance between coils means thermal energy dissipates unevenly. Constant pitch designs are generally easier to control, but variable pitches require dynamic energy modulation. When transitioning from a 0.010-inch pitch to a 0.025-inch pitch, the thermal mass changes, requiring the welding system to adjust its output on the fly.

Mandrel material selection acts as a critical heat sink to control localized expansion. Copper-alloy cores, solid stainless steel, or PTFE-coated mandrels offer different thermal conductivities. The right mandrel draws excess heat away from the weld zone, preventing the coil wire from overheating and shifting. Silver-plated copper mandrels are frequently used for their rapid heat dissipation, though they require careful handling to prevent surface degradation over multiple cycles.

Pitch distortion directly impacts end-user outcomes. Surgeons rely on catheters to perform flawlessly. Distorted coils lead to kinking, loss of pushability, torque transmission failure, and inconsistent radiopacity. A single shifted coil can cause a procedure to fail, highlighting the necessity of absolute precision. When a coil bunches up, it creates a stiff zone that can traumatize vessel walls, while a stretched coil creates a weak point prone to buckling.

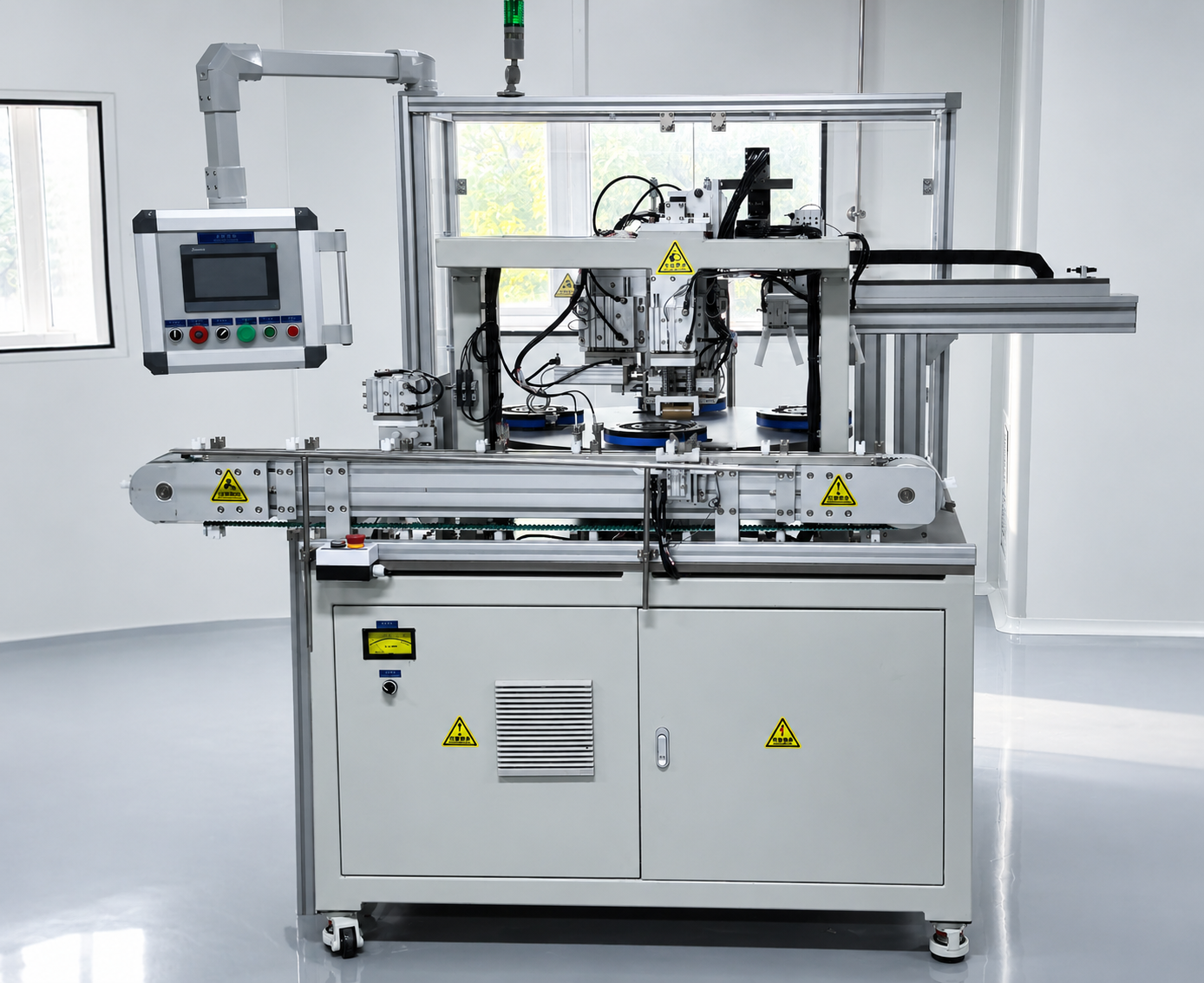

Core Mechanisms in a Tubing Coil Spot Welding Machine

Specific machine components are engineered to lock in coil pitch during the thermal cycle. These solution categories focus on mechanical stability, precise energy delivery, and real-time monitoring to prevent any movement. You cannot rely on manual alignment for these processes; the equipment must take full control of the assembly's geometry.

Programmable tension controllers maintain continuous, exact pull-force on the coil wire. These micro-tensioning systems prevent slack or over-stretching during the weld. By keeping the wire taut at a specific tension—often measured in grams—the machine ensures the pitch remains locked before the energy is applied. Closed-loop load cells monitor this tension at 1000 Hz, making micro-adjustments to the payout spool to compensate for any mechanical drag.

Custom-ground collets support the tube and coil assembly without crushing the polymer jacket or distorting the wire. Precision mandrel and collet tooling are vital for holding the delicate structure firmly. If the tooling is imprecise, the clamping force itself will alter the coil spacing. V-block clamps or custom semi-circular collets must be machined to match the exact outer diameter of the catheter assembly to distribute force evenly.

High-resolution linear encoders and precision ballscrews step and lock the catheter assembly in place. These indexing systems and servo controls mechanically enforce the exact pitch during the weld trigger. The assembly is moved in microscopic increments, ensuring perfect alignment for each spot weld. Backlash in these mechanical systems must be virtually zero; otherwise, the accumulated error will cause the pitch to drift over a long catheter shaft.

Micro-laser spot welding and micro-resistance welding handle thermal dissipation differently. Laser systems typically produce a smaller heat-affected zone (HAZ) compared to TIG or capacitive discharge methods. Minimizing the HAZ is crucial for preventing the thermal expansion that warps the coil pitch. Fiber lasers with spot sizes down to 10 microns allow engineers to weld the wire to a marker band or hypotube without heating the adjacent coils.

Advanced resistance welding or laser systems utilize closed-loop thermal control with microsecond energy modulation. This rapid feedback loop ensures only the exact amount of energy needed is delivered. By tightly controlling the thermal input, the machine prevents excess heat from spreading along the wire. In resistance welding, inverter power supplies adjust the current dynamically based on the resistance of the weld joint, preventing blowout and subsequent wire movement.

1. Load the mandrel and inner liner assembly into the primary collet chuck.

2. Thread the coil wire through the micro-tensioning load cell and attach it to the proximal anchor point.

3. Engage the servo-driven indexing system to advance the assembly to the first weld coordinate.

4. Activate the vision system to verify wire position and pitch spacing against the programmed tolerance window.

5. Trigger the closed-loop weld cycle, monitoring thermal feedback and tension stability simultaneously.

Evaluating Equipment: Features to Outcomes in Medical Manufacturing

Process engineers must evaluate machine specifications against production yield. The features-to-outcomes framework helps determine if a machine can maintain the required tolerances over high-volume runs without excessive downtime or scrap. You are not just buying a welder; you are buying a pitch-maintenance system.

Assessing a machine's process capability index (Cpk) is necessary for verifying repeatability. High Cpk values indicate the machine consistently maintains pitch tolerances across thousands of cycles. Equipment must demonstrate this reliability to be viable for commercial catheter manufacturing. A Cpk of 1.33 is often the minimum acceptable baseline, but for critical neurovascular devices, engineers push for a Cpk of 1.67 or higher regarding pitch consistency.

The welding process must integrate seamlessly with upstream and downstream equipment. The welding machine must receive materials from a medical tube reforming machine without introducing pre-stress or mechanical twist. If the reforming process leaves residual stress in the polymer, the heat from the spot welder will cause the tube to warp, taking the coil pitch out of alignment with it.

Consistent pitch also impacts the success rate of a downstream catheter tip fusion machine, as crowded coils create thermal hot spots during tip forming. When coils are too close together, they act as a dense thermal mass, causing the polymer to burn rather than flow smoothly into the atraumatic tip shape.

Mechanical clamping modules must accommodate multiple wire diameters, including flat and round profiles. Tooling quick-changeover capabilities allow operators to switch production runs without requiring complete system recalibration. This flexibility is essential for facilities producing a variety of catheter designs. Kinematic mounts and RFID-tagged tooling can reduce changeover times from hours to minutes while maintaining micron-level alignment.

Batch reporting, weld parameter recording, and user-level access controls are mandatory for regulatory audits. Data logging and traceability ensure every weld is documented. This data is critical for maintaining compliance and investigating any field failures. The system should automatically log peak current, voltage, tension force, and vision system pass/fail images for every single part produced.

Secondary Processing and Pitch Integrity

Maintaining pitch during welding protects the integrity of subsequent manufacturing steps. If the pitch is compromised early in the process, every secondary operation becomes a potential failure point, leading to compounded scrap rates. The spot weld is the foundation; if it shifts, the entire house collapses during lamination or punching.

A consistent coil pitch is required to prevent tool breakage and jacket tearing during punching operations. When using a catheter cold punching machine, the punch must strike cleanly between the coils. If the pitch has shifted, the punch will hit the wire, damaging the tool and ruining the catheter. Tool steel punches shatter easily when they impact 304V stainless wire, causing catastrophic line stoppages.

Initial spot weld stability directly affects the application of secondary heat. When using a rotary hot punching machine for side-hole creation, shifting coils can lead to partial wire exposure or lumen collapse. The thermal processing must account for the existing weld integrity. If the initial spot weld was weak or allowed the coil to retain tension, the secondary heat from the hot punch will cause the wire to snap back, exposing sharp metal edges inside the catheter lumen.

Precise weld zones prevent structural unraveling when the catheter outer jacket is laminated under heat and pressure. Ensuring structural continuity means the coils remain locked in their intended positions while the polymer melts and flows around them, creating a unified composite structure. Reflow processes use heat shrink tubing to compress the outer jacket; if the spot welds fail to hold the pitch, the compression force will bunch the coils together, creating a rigid, unusable segment.

Implementation Risks and Process Validation (IQ/OQ/PQ)

Onboarding new welding equipment presents common hurdles that must be mitigated. Identifying these implementation risks early ensures a smoother transition to full-scale production and reduces the likelihood of unexpected downtime. Engineers must approach validation with a clear understanding of the mechanical variables at play.

Different materials exhibit varying thermal behaviors. Flat wire reacts differently than round wire, and nitinol has different expansion properties than stainless steel. Addressing these material variances requires specific tooling and energy profiles to maintain pitch consistency across different product lines. Flat wire, for example, tends to twist if the tensioning system is not perfectly aligned, requiring specialized guide rollers to keep it flat against the mandrel.

Sensor drift in tensioning systems poses a significant risk. Strict preventative maintenance schedules are required for clamping and collet calibration. This prevents over-clamping, which crushes the inner liner, or under-clamping, which allows coil slippage during the weld cycle. Load cells should be calibrated monthly using certified dead weights to ensure the tension readout matches the actual physical force applied to the wire.

Establishing the operational limits involves cross-referencing weld energy, clamping force, and tension variables. These Operational Qualification (OQ) parameter windows define the "window of zero pitch migration." Operating strictly within these validated parameters ensures consistent yield. Engineers use Design of Experiments (DoE) to map out the failure boundaries, intentionally pushing the energy and tension too high and too low to find the robust center point.

Executing Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) requires a clear validation strategy. Best practices focus on pitch retention metrics, ensuring the equipment consistently meets the tight tolerances demanded by medical device regulations. PQ runs should span multiple days, multiple operators, and multiple material lots to prove that the pitch remains stable regardless of normal production variations.

Conclusion

1. Audit your current scrap rates to identify exactly how much yield is lost to pitch distortion during thermal processing.

2. Request a proof-of-concept sample run using your facility's specific mandrel and coil materials to empirically verify pitch tolerances on new equipment.

3. Standardize your tooling interfaces across the production line to ensure quick changeovers without losing micron-level alignment.

4. Implement a monthly calibration schedule for all tension load cells and linear encoders to prevent sensor drift from ruining batch consistency.

FAQ

Q: How does a tubing coil spot welding machine prevent heat damage to the polymer jacket?

A: The machine utilizes microsecond energy modulation and closed-loop thermal feedback to minimize the heat-affected zone. Precision mandrels also act as heat sinks, drawing excess thermal energy away from the polymer jacket to prevent melting or degradation during the weld cycle.

Q: What is the acceptable coil pitch tolerance for reinforced neurovascular catheters?

A: Acceptable tolerances for neurovascular catheters are typically within a few microns of the design specification. This extreme precision is necessary to ensure predictable flexibility, torque response, and pushability when navigating complex and delicate vascular pathways.

Q: How does coil tensioning differ between nitinol and stainless steel wire during welding?

A: Nitinol is superelastic and highly sensitive to thermal changes, requiring highly precise, dynamic tension control to prevent spring-back. Stainless steel is more rigid but still requires continuous micro-tensioning to prevent slack or thermal expansion from altering the pitch during the weld.

Q: Can a catheter tip fusion machine correct minor pitch distortions caused during spot welding?

A: No, tip fusion processes cannot correct upstream pitch distortions. In fact, crowded or shifted coils will create thermal hot spots during the fusion process, likely causing the polymer to burn or flow unevenly, resulting in a defective catheter tip.

Q: What data should be logged during the spot welding process for ISO 13485 compliance?

A: Compliance requires logging specific weld parameters, including energy output, weld duration, tension force, and batch information. User-level access controls and time-stamped records are also necessary to ensure full traceability and accountability for regulatory audits.

Q: Why is precise coil pitch critical before using a catheter cold punching machine?

A: A cold punching machine relies on exact spacing to punch holes cleanly through the polymer jacket without striking the internal wire. If the pitch varies, the punch tool will hit the metal coil, causing tool breakage, jacket tearing, and immediate product failure.

Q: How does the upstream preparation on a medical tube reforming machine impact the weld quality and pitch maintenance?

A: Upstream reforming must deliver the tube without introducing mechanical twist or pre-stress. If the tube is stressed before welding, the application of heat will cause the assembly to warp or untwist, making it impossible to maintain a precise coil pitch.
