How PVC Bags Achieve High-Frequency (HF) Welding
PVC bags can be welded using high-frequency welding (HF welding / RF welding) due to the strong dielectric loss characteristics of PVC molecules in a high-frequency electric field. The principle and process can be understood in several steps:
1. Basic Principle of High-Frequency Welding
HF welding uses a high-frequency oscillator (commonly 27.12 MHz or 13.56 MHz) to generate an alternating electric field.
PVC molecular chains contain many polar groups (–C–Cl) that continuously reorient in the high-frequency field.
The internal molecular rotation produces friction and dielectric loss, converting electrical energy directly into heat.
Heating is generated internally within the material rather than from external conduction, allowing fast and localized temperature rise.
2. Welding Process
Clamping: Place two or more layers of PVC sheets between the electrodes of the HF welding machine.
Apply pressure & high-frequency field: The oscillator generates an alternating electric field between the electrodes.
Molecular polarization & heating: Polar molecules inside PVC oscillate repeatedly, producing heat and melting the interface.
Molecular fusion: Under applied pressure, PVC chains from both layers interpenetrate, forming a molecular-level bond.
Cooling & setting: After the HF field is stopped, maintain pressure while the weld cools and solidifies, producing a seam with strength comparable to or exceeding the base material.

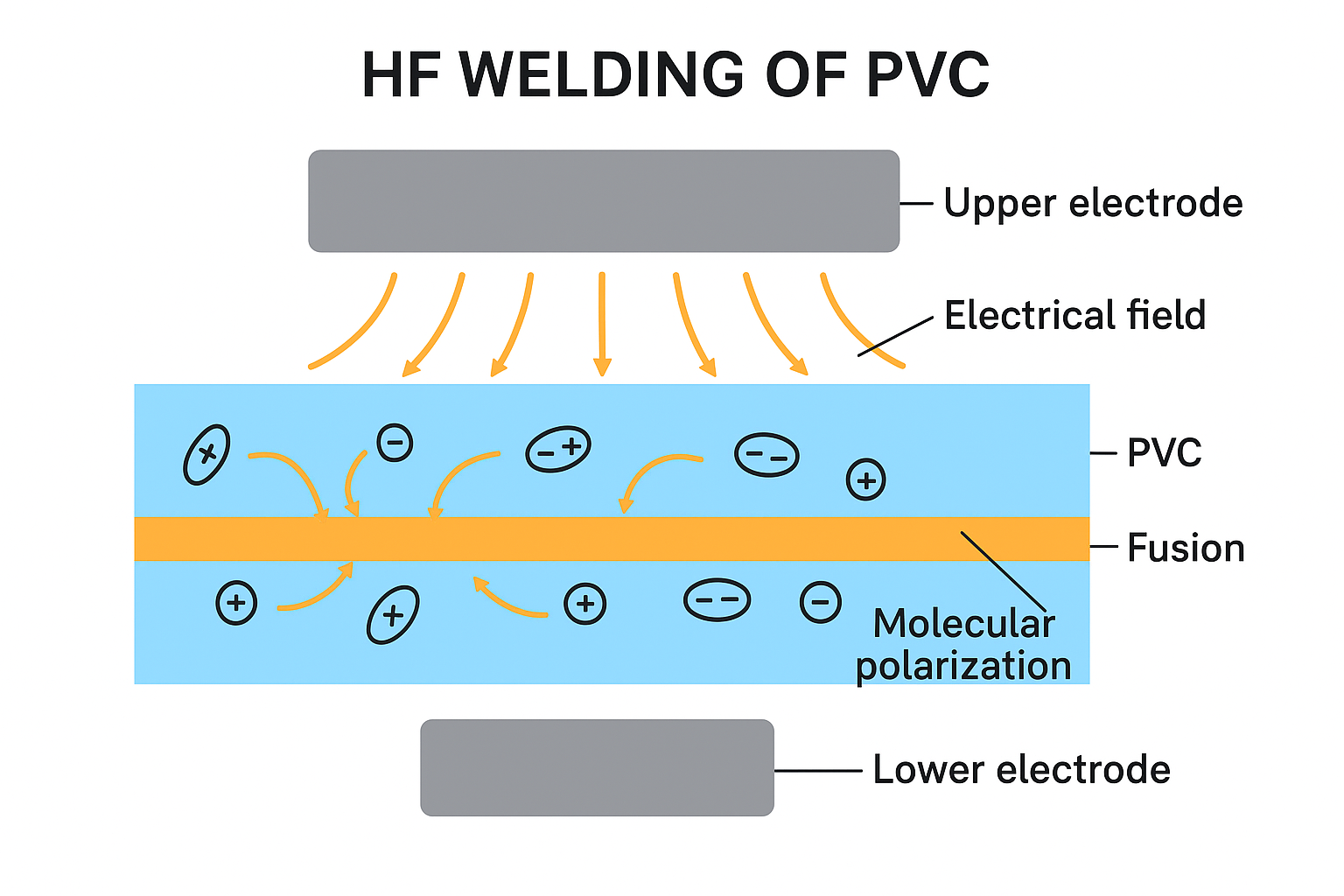

cross-sectional diagram showing HF welding of PVC
3. Why PVC is Ideal for HF Welding
High dielectric loss factor: PVC efficiently absorbs high-frequency energy.
Low softening temperature: Soft PVC softens at around 80–100°C, allowing rapid welding.
Many polar groups: Chlorine atoms in the polymer create strong dipoles, enhancing HF heating.
Good adhesion when molten: Molten PVC chains easily intermix and bond, yielding strong welds.
4. Application Features
Common frequency: 27.12 MHz (industrial, scientific, and medical ISM band) is most widely used.
Equipment structure: Includes HF oscillator, electrode pressure system, and cooling system.
Weld characteristics: Smooth appearance, airtight, strength comparable to or higher than base material.
Typical products: Urine bags, infusion bags, blood bags, inflatable products, PVC document pouches, etc.
High-Frequency (HF) Welding vs. Thermal Welding for PVC, EVA and TPU
When the base materials are PVC, EVA or TPU, high-frequency welding (also known as RF or dielectric welding) offers clear advantages over conventional thermal-welding methods such as hot-plate, hot-air or impulse welding.
✅ HF Welding vs. Thermal Welding – Comparative Overview
Criterion | HF-Welding Advantage | Thermal-Welding Limitation |
Heating mechanism | Molecular friction heats | External conduction heats from the outside in → risk of overheating surface or cold core |
Cycle time | Very fast: 1–3s; ideal for continuous, automated lines | Long pre-heat & cool-down → low throughput |
Heat-affected zone (HAZ) | Minimal →almost no shrinkage, warpage or discoloration | Large HAZ → edge curling, yellowing, distortion |
Weld strength / seal integrity | Weld strength≈ base material; excellent for air-tight, liquid-tight seals | Weak spots, voids, leaks are common; secondary sealing often required |
Material compatibility | Excellent for polar polymers (PVC, EVA, TPU) without additives | EVA & TPU scorch easily; PVC releases HCl and degrades if temperature is not tightly controlled |
Surface quality | Clean, no burn marks, no squeeze-out | Burn marks, gloss loss, flash and squeeze-out require post-processing |
Environmental & safety | Solvent-free, no VOCs, meets RoHS/REACH; low fire risk | May emit fumes (HCl from PVC), requires extraction and fire-safety measures |
Energy & cost | High electrical efficiency (>90 %) and low idle losses → lower running cost | Gas or large thermal mass → higher energy use & maintenance cost |
Material-Specific Performance
Material | HF Compatibility | Typical Products | Key Thermal-Welding Issues |
PVC | ★★★★★ | Medical blood bags, inflatables, tarpaulins, rainwear, banners | Decomposes at ≥ 200 °C, releases HCl, turns yellow-brown |
EVA | ★★★★☆ | Shoe midsoles, floor mats, solar encapsulant films | Low-melt point (≈ 70-90 °C) → easy scorching, sticking to tools |
TPU | ★★★★★ | Medical urine bags, dry-suit seals, air bladders, footwear films | Tackiness & yellowing; large HAZ hurts elasticity & clarity |
✅ Bottom Line
For flexible, polar and heat-sensitive plastics (PVC, EVA, TPU), high-frequency welding delivers higher speed, stronger & cleaner welds, lower energy use and better environmental compliance than any traditional thermal-welding process.
